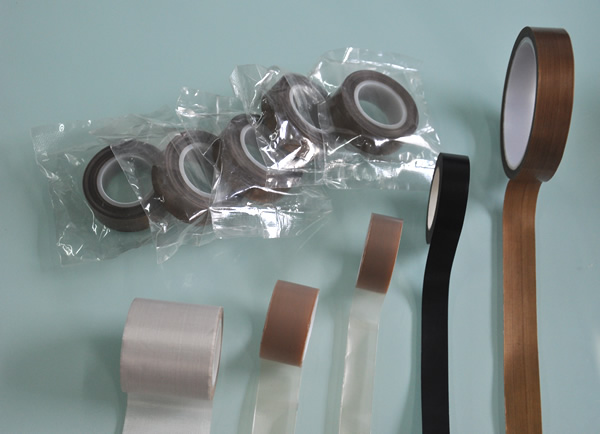

Teflon Tape |
Teflon adhesive tape is using kinds of fiberglass woven basal fabric which are imported and coated with PTFE by special process. It is a new product with high capability and multiform function of complex material. Fiberglass fabric coated with PTFE has various good capabilities and it is widely used in aircraft industry, paper manufacture, food, environment protection, print and painting, costume, chemical, glass manufacture, medical, electronic, insulation, building (basic cloth of topping frame), sharpener slice, machinery, etc.
capabilities and characteristics:
1). It can be used under the temperature of -196 to 300, which has the capability of weather resistant and age resistant. Under practical situation of high temperature of 250 for 200 days, not only the intensity will not decrease, the weight will not reduce; if put it under the high temperature of 350 for 120 hours, the weight only decreased by about 0.6%; under the situation of -180, it will not chap and keep the original pliability;
2). Hardly to adhere any material; it is easy to wash away the blot or other dust such as resin, coating material, etc.
3). Chemical corrosion resistant, it could resist acid, alkali, aqua fortis and various kinds of organic liquid corrosion;
4). Capability of medicament resistant and non-poison, almost to resisting all kinds of medicament;
5). High capability of insulation (small permittivity: 2.6, the tangent is lower than 0.0025), ultraviolet resistance, static proofing;
6). Fireproofing and flame resisting;
7). Easy to use and long using life.
Application range:
A: sorts of high temperature roller submerging, works of calefaction slab, membrane doffing;
B: heat sealing of food, pharmaceutical and plastic bag;
C: cushion pasting of slippery pond, stuff funnel, aircraft mould, etc, it also could be used on platen, thermoplastic doffing module;
D: suitable for other surface disposal such as glue proofing, corrosion resistance, high temperature resistance.
E: it could be used in the fields of packing (including thermoplastic), compositing, thermoplastic seal, electron and electric.
Specification:
thickness:
width: 10
length: 10
color: brown, white, black
Sorts of product: PTFE fiberglass adhesive tape, pure Teflon adhesive tape, silicon-rubber adhesive tape.
1. PTFE coated fiberglass adhesive fabric series
Item No |
Thickness |
Max width |
Adhesive strength |
Tensile Strength |
temperature |
T13 |
0.13mm |
1250mm |
28N/100mm |
1700N/100mm |
-70 to 260 |
T18 |
0.18mm |
1250mm |
48N/100mm |
2750N/100mm |
-70 to 260 |
T25 |
0.25mm |
1250mm |
62 N/100mm |
3650N/100mm |
-70 to 260 |
T30 |
0.3mm |
1250mm |
65 N/100mm |
4250N/100mm |
-70 to 260 |
T40 |
0.4mm |
1250mm |
68 N/100mm |
4650N/100mm |
-70 to 260 |
2. Pure PTFE adhesive tape.
Item No |
Thickness |
Max Width |
Adhesion(to steel) |
Tensile Strength |
Temperature¡æ |
TS08 |
0.08mm |
1250mm |
20N/100mm |
300N/100mm |
-70 to 260 |
TS13 |
0.13mm |
1250mm |
25N/100mm |
400N/100mm |
-70 to 260 |
TS18 |
0.18mm |
1250mm |
44N/100mm |
650N/100mm |
-70 to 260 |
TS25 |
0.25mm |
1250mm |
58N/100mm |
950N/100mm |
-70 to 260 |
3. several other types adhesive tape are also available such as black Teflon tape, PFA, FEP adhesive tape.
Properties and applications:
PTFE adhesive fabric and tape is well known as its smooth surface, non stick, chemical resistance and high temperature resistance and insulating properties, it is widely used in packaging, heat moulding, laminating, sealing and electrical industries etc. PTFE adhesive fabric is enhanced by fiberglass fabric, which improved its tensile strength. It could be used plastic moulding except additional applications, it is reusable, easy to install.
